Vertical Spindle Rotary Surface Grinding Machine

CRG - V8

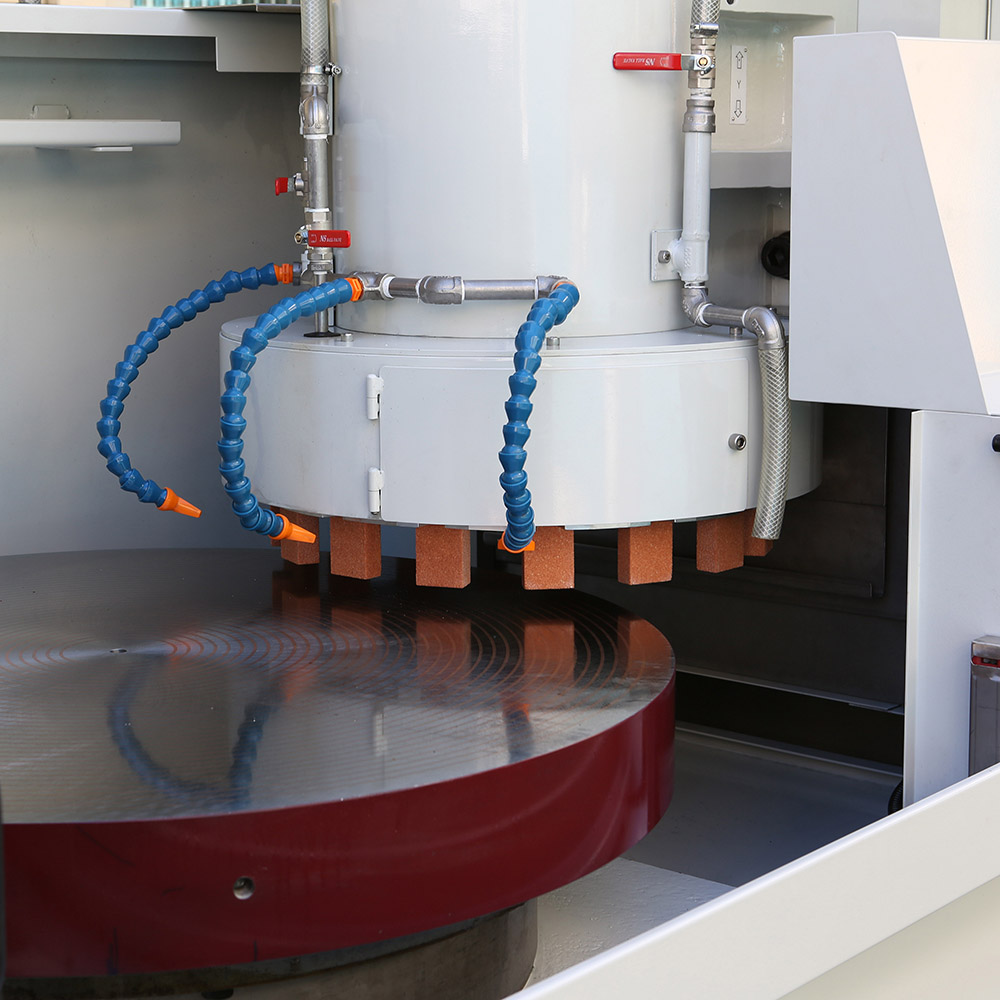

The CRG-V8 is designed for precision grinding of parts up to 800mm in diameter. It is able to quickly effectively remove stock from a variety of materials including steel, ceramic, silicone and cast iron. Capable of holding flatness and parallelism to +/- 0.005mm. Work-pieces can be clamped centered or multiple parts can be ground positioned off center.
Product Feature

  • High precision rotary table and wheel spindle

  • Automatic lubrication

  • Easy to operate machine control with LCD monitor

  • Z axis equipped with variable speed AC-servo motor and ball screw

  • The program and graphs can be developed by the requests from customers

  • Electronic hand wheel for Z axis with pre-selectable resolution (0.1 / 0.01 / 0.001 mm)
    • >
Product Specifications
  Item Unit CRG - V8
Capacity Diameter of rotary table mm Ø800
Load of rotary table kg 400
Distance from flange surface
to chuck top		 mm 550
Table Speed of rotary table rpm 5 ~30
Motor kw 3.7
Spindle Diameter of grinding wheel mm Ø550
Grinding segments
( W x T x L x No. )		 mm 50 x 25 x 120
14 pcs
Speed of wheel spindle rpm 720 (60HZ)
Motor kw 22
Z - axis Travel mm 500
Feed rate mm/min 0~300
Motor kw AC servo 0.85
Y - axis Travel mm 500
Feed rate mm/min 0~1000
Motor kw 1.5
Machine Floor space ( L x W ) mm 2600x1800
Height mm 2300
Weight kg 6500

Standard Accessories
  Electromagnetic chuck
Grinding wheel
Diamond dresser with base
Working lamp
Tool box with tools
   x 1
x 1
x 1
x 1
x 1
Optional Accessories
  Coolant System With Magnetic Separator
Coolant System With paper filter
Coolant System With magnetic separator & paper filter
Inverter of wheel spindle
