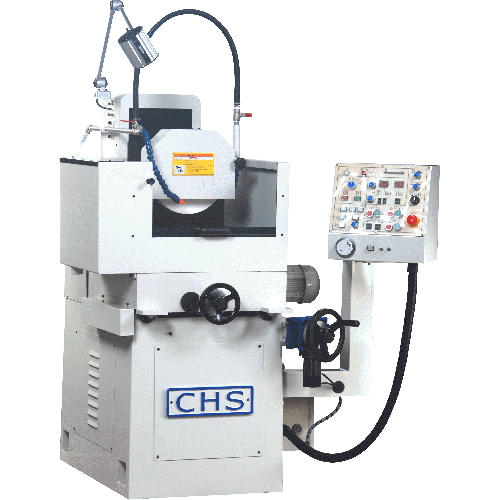

Horizontal Spindle Rotary Surface Grinding Machine

Specification
CHS-305A CHS-360A unit
Rotary table diameter 305 360 mm
Rotary table speed 0 ~ 200 0 ~ 200 RPM
Grinding wheel size Ø305x32xØ127
( OD x W x ID )
Ø305x32xØ127
( OD x W x ID )
mm
Wheel spindle speed 1750
(3.5HP - 60HZ)
1750
(3.5HP - 60HZ)
RPM
Distance from center of wheel spindle to chuck top 300 300 mm
Tilt angle of table ±0° ±0° angle
Machine size 1500x1500x1700
( L x W x H )
1500x1500x1700
( L x W x H )
mm
Weight 1200 1300 kg
