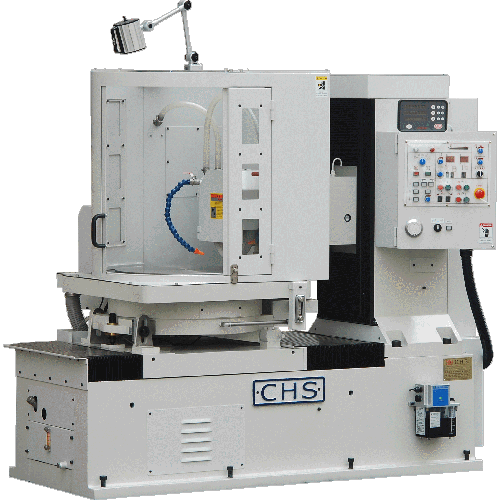

Horizontal Spindle Rotary Surface Grinding Machine

Specification
CHS-800A CHS-1000A unit
Rotary table diameter 800 1000 mm
Rotary table speed 0 ~ 100 0 ~ 100 RPM
Grinding wheel size Ø455x50xØ152.5
( OD x W x ID )		 Ø455x50xØ152.5
( OD x W x ID )		 mm
Wheel spindle speed 1150
(15HP - 60HZ)		 1150
(15HP - 60HZ)		 RPM
Distance from center of wheel spindle to chuck top 500 500 mm
Tilt angle of table ± 0.5 ° ± 0.5 ° angle
Machine size 2450x1800x2100
( L x W x H )		 2450x1800x2100
( L x W x H )		 mm
Weight 5500 6500 kg
