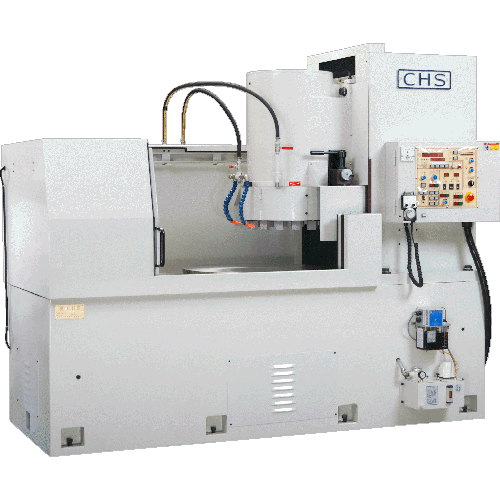

Vertical Spindle Rotary Surface Grinding Machine

Specification
CHS-800WA CHS-1000WA unit
Rotary table diameter 800 1000 mm
Rotary table speed 0 ~ 30 0 ~ 30 RPM
Grinding wheel size Ø500 Ø600 mm
Wheel spindle speed 850
(25HP - 60HZ)
720
(30HP - 60HZ)
RPM
Distance from center of wheel spindle to chuck top 400 400 mm
Tilt angle of table ±0° ±0° angle
Machine size 2450x1800x2100
( L x W x H )
2450x1800x2100
( L x W x H )
mm
Weight 5500 6500 kg
